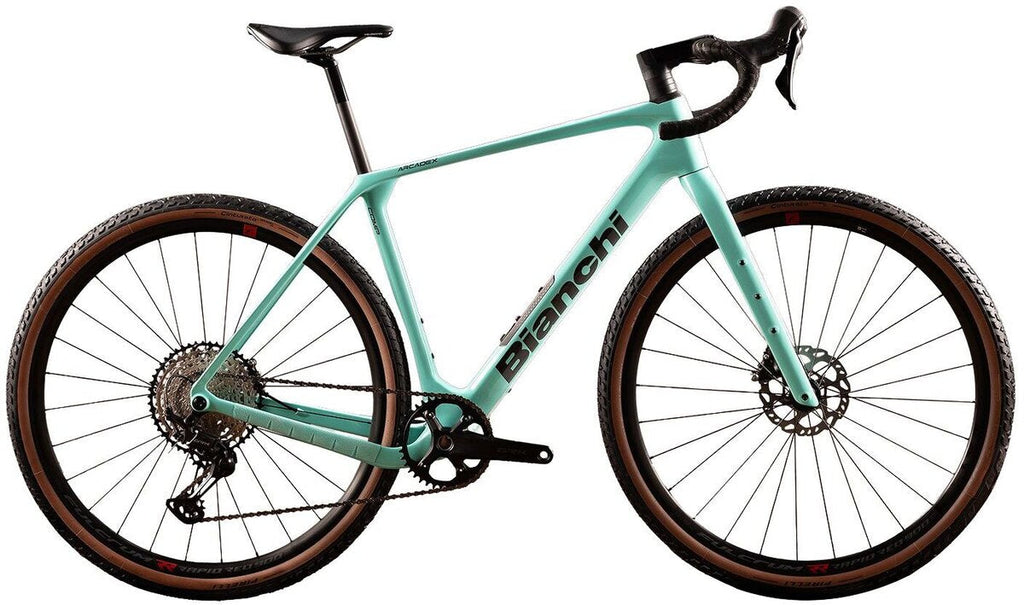

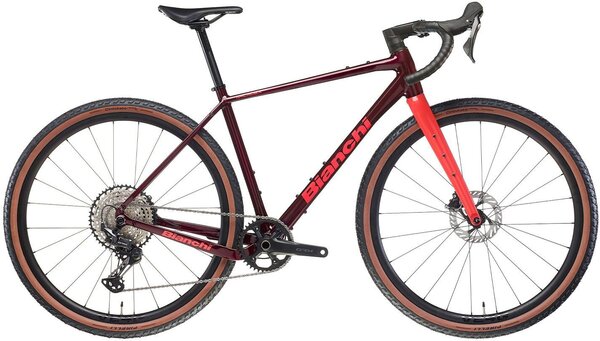

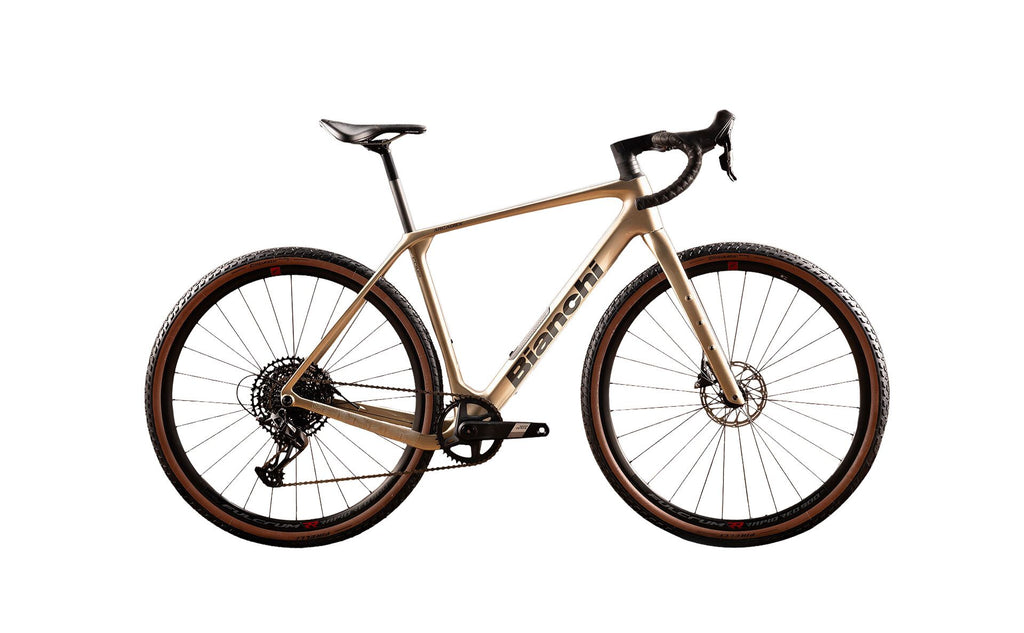

Bianchi Arcadex Comp
Sale price
$2,799.99
Regular price $3,500.00
Contact the shop for best pricing.
In stock at the shop:
GRX 610/822 · SM · CK16/Graphite Glossy — $3,500.00 $2,799.99
Built to order — availability changes with the season, so we confirm it with the brand before anything is promised. Tell us the build and size you’re after and we’ll check today’s availability and lead time.
Italian heritage goes gravel — the Arcadex brings Bianchi character to mixed terrain, with GRX builds in aluminum or carbon Comp trim. Celeste optional, personality standard.
A build order starts a conversation, not a checkout — we call you back before anything is final. Prefer the phone? (651) 247-8614.
Specifications
FrameArcadex Comp Disc Brake Specification: Flat Mount 140/160 Bottom Braket Standard: PressFit 86.5 X Ø41 Rear Axle: thru12 OLD (Over-Locknut-Dimension): 142 mm Front Derailleur:Non Compatible Rear Derailleur: SRAM UDH Hanger type
ForkBianchi Arcadex Fork Disc Brake Specification: Flat Mount 140/160 Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm Tire Clearance: ETRTO 622-42mm Steer tube Diameter: 1 1/8" Material: Epoxy - SM Carbon Fiber Composite
HeadsetBianchi Custom Acros ICR (Internal Cable Routing) Spacers: 5 mm x1, 10mm x3
ShiftersShimano GRX 610 ST/BL-RX610
Rear DerailleurShimano GRX 822 RD-RX822, SGS Maximum Cassette Sprocket 51T
CranksetShimano GRX 610 FC-RX610-1, 40T Crank Length: 170mm-XS(47)-SM(51), 172.5mm-MD(55)-LG(58), 175mm-XL(61)
Bottom BracketShimano SM-BB72-41B, press fit
ChainShimano CN-M7100
CassetteShimano CS-M7100-12 speed, 11-51T Driver body Interface: MicroSpline
BrakesShimano Hydraulic Brake, BR-RX400
RotorShimano SM-RT70 IceTech Hub Interface: Centerlock Rotor Diameter: 160 mm (front & rear)
WheelsFulcrum RapidRed 900 2-Way Fit Ready (for clincher and tubeless ready) Rim Diameter: 700C Material: Aluminum Alloy Rim Height: 24 mm Inner Width Channel: 22 mm
TirePirelli Cinturato™ GRAVEL M Classic, 45-622 tan sidewall
StemVelomann AICR Alloy Rise: -2° Stem Lengths: 80mm - XS(47), 90mm - SM(51), 100mm-MD(55), 110mm-LG(58), 120mm-XL(61)
HandlebarVelomann Gravel ICR Alloy Flare: 16° Drop: 130mm Reach 70mm Widths: 400 - XS(47) SM(51), 420 - MD(55) LG(58), 440 - XL(61)
Grips / ExtensionsBianchi Hexagon tape 2.5mm thickness, Full black
SeatpostVelomann Carbon UD SeatPost O.D: Ø27.2 mm Seatpost lengths: 300mm-XS(47), 350mm- SM(51) MD(55), LG(58) XL(61)
SaddleVelomann MITORA 149 H2 cover: soft touch, padding: foam, shell: nylon carbon rails: Steel length: 250mm width: 149mm
Factory spec — components may vary by production run; we confirm the exact build before anything ships.
